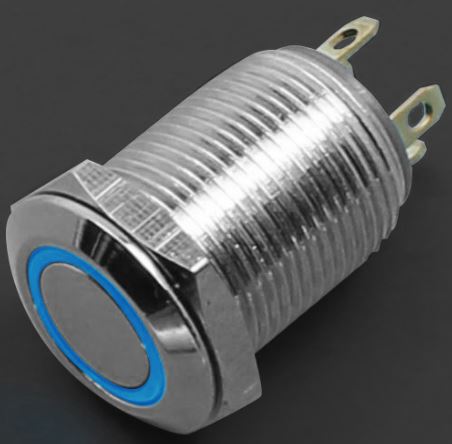

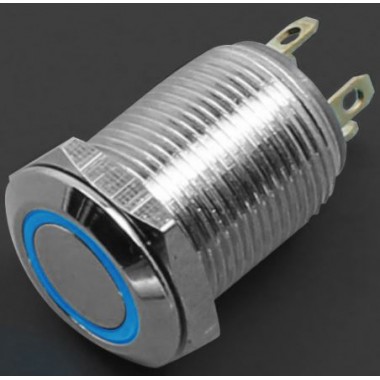

Ring Light Illuminated Push Button Flat - 12mm BLUE
Pulsador metálico plano de tipo momentáneo, con LED interno que ilumina el anillo alrededor del mismo. Color del LED: AZUL, diámetro de la rosca: 12 mm. Incluye tuerca. Requiere resistencia limitadora externa para alimentar el LED (se incluye una de 180 ohms, para 5V).
COD: DAGQ12F10EM-B
Peso: 0.007 Kg
Disponibilidad: En Stock
ARS 6341.00
El producto no está disponible para la venta en este momento
Características
Basic Info
- Number of Switch: Single Control Switch
- Usage: Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch, etc
- Contact Type: Solder
- Panel Mounting Hole: 12mm
- Material: Stainless Steel/ Chrome Plated Brass
- LED Volt: 3V
- Specification: CE, ROHS, SGS, GMP
- Type: Momentary
- Structure: Power Built-in Type
- Kind: Single-pole on-off Switch
- Detection Method: Correlation Type
- Certification: ISO9001, UL, CE, CCC
- Function: off- Momentary on
- Switch Type: Waterproof Push Button Switch
- LED Color: Blue
- Contact Configulation: 1 NO
- Performance: Spst
Product Description
| Usage | Extensive Use | |
| Type | Push Button | |
| Rated Voltage | 36VAC | |
| Rated Current | 2A | |
| Protection Level | IP67 | |
| Contact Type | 1NO | |
| Material | Chrome plated Brass /Stainless steel | |
| LED Color | Blue | |
| LED Volt | 3v | |
| Minimum Applicable Load | 5V AC/DC,1mA | |
| Contact Material | Silver Plated | |
| Certificate | CE,Rohs | |
| Terminal Style | 110" Solder/Quick Connect | |
| Operating Temperature | -25°C ~+55°C |
| Operating Humidity | 45%~85% RH |
| Contact Resistance | 50mΩ max. |
| Insulation Resistance | 100MΩ min. (500V DC megger ) |
| Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
| Degree of Protection | >10g |
| Electrical Life | 100,000 operations min. (at full rated load) |
| Mechanical Life | Momentary:1,000,000 operations min. |
Dielectrical Life |
Switch Unit: 2,000VAC,1 minute between terminals of same pole; 1,000VAC,1minute between contact and lamp terminals. Illumination Unit:2,000VAC,1min. Between live part/ground |
Soldering Temperature |
20W/5 seconds or 260 °C/3 seconds |
