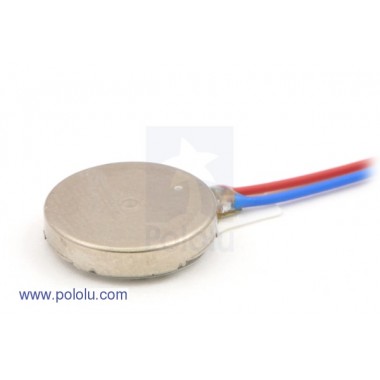

Motor de vibración sin eje
Motor de vibración con una amplitud de 0.75g
COD: P001638
Peso: 0.001 Kg
Disponibilidad: En Stock
ARS 1990.00
El producto no está disponible para la venta en este momento
Características
Overview

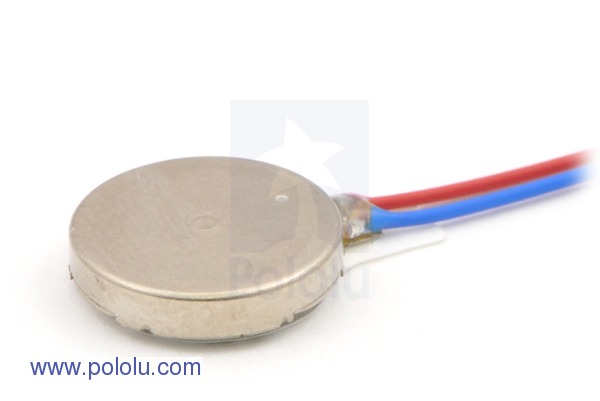

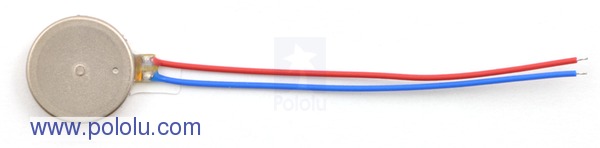

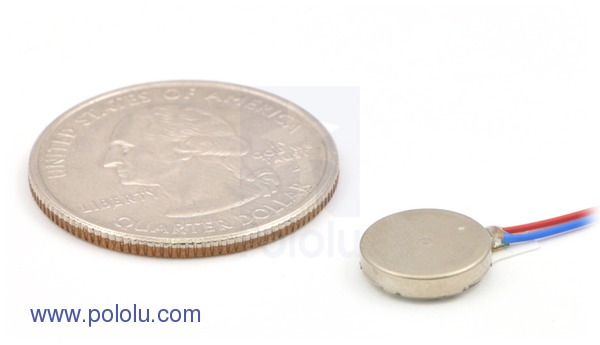

This shaftless vibration motor is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 2.0 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project. The motor has a 3M adhesive backing on it for easy mounting and 1.5" leads for making quick connections. Polarity is not important; the motor can run CW or CCW.
Specifications
| Size | 10 mm diameter, 2.0 mm height |
|---|---|
| Weight | 0.8 g |
| Recommended operating voltage | 2.5 – 3.5 V |
| Vibration amplitude at 3 V | 0.75g |
| Speed at 3 V | 14500 RPM (12000 RPM min) |
| Free-run current at 3 V | 60 mA (80 mA max) |
| Startup current at 3 V | 120 mA max |
| Motor resistance | 29 ± 6 Ω |
| Operating temperature | -10°C to +60°C |
| Storage temperature | -30°C to +70°C |

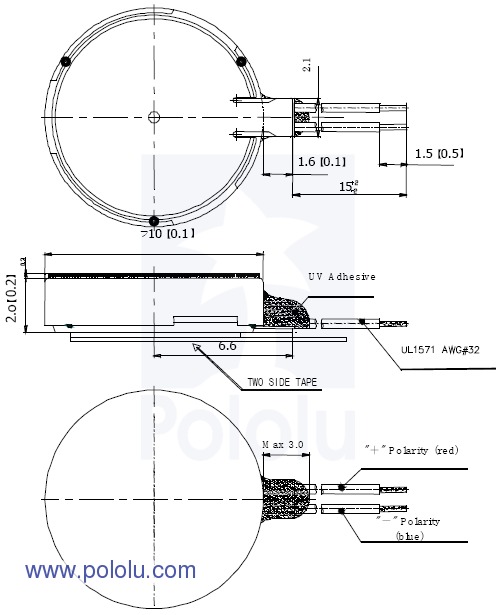

Dimensions
| Size: | 10.0 x 2.0 mm |
|---|---|
| Weight: | 0.8 g |
General specifications

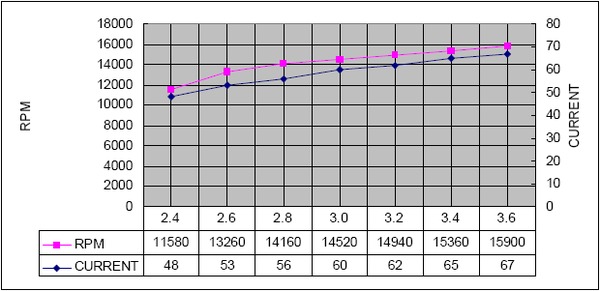

| Free-run speed @ 3V: | 14500 rpm (12000 RPM minimum at 3 V.) |
|---|---|
| Free-run current @ 3V: | 60 mA (80 mA maximum at 3 V.) |
| Voltage: | 3 V (Recommended operating range is 2.5 to 3.5 V.) |
| Vibration amplitude: | 0.75 g |
